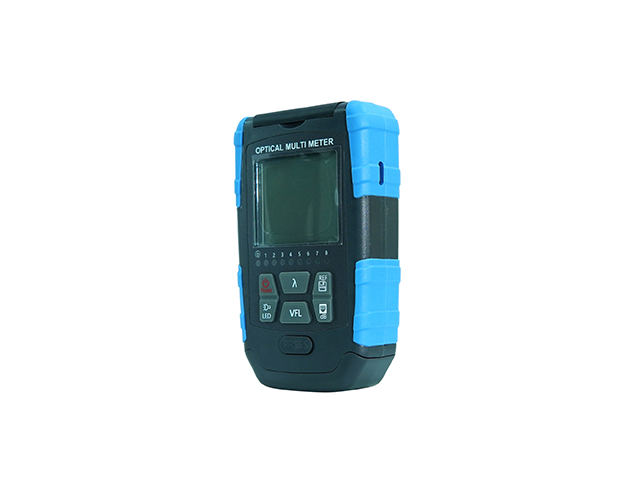

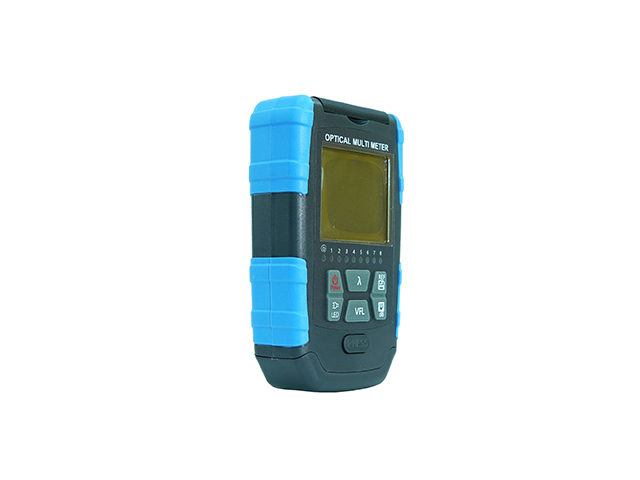

The Solitine Optical Power Meter with VFL & RJ45 Tester is a versatile, high-accuracy device designed for fieldwork. It accurately tests network cable signals, features a stable VFL output, and includes RJ45 network testing as an optional add-on. With self-calibration, wavelength memory, and a rugged rubber exterior, this tool is reliable and durable. It includes USB charging, an 18650 Li-ion battery, and a low-power design for long standby times.
| Optical Power Meter | Detector Type | InGaAs |
| Optical Connector | SC/FC & 2.5mm Universal | |
| Calibrated Wavelengths | 850, 1300, 1310, 1490, 1550, 1625 nm | |
| Measurement Range | -50~+26dBm or -70~+10dBm | |
| Accuracy | 0.2 dB | |
| Power Measurement Linearity | 0.1 dB | |
| Display Resolution | 0.01 dB | |
| Power Display Units | dBm, dB, mW, W | |
| Visual Fault Locator | Output Power | 1mW / 10mW / 20mW / 30mW |
| Range | 12-km@SM | |
| Connector | 2.5mm Universal | |
| Laser Safety Rating | Class 2 | |
| Wavelength | 650nm 20nm | |
| Output Modes | Continuous (CW), 2-3 Hz Pulse | |
| Reverse Battery Protection | Yes | |
| Others | Power Supply | 18650 Li-ion battery |
| Auto Off | 10 minutes | |
| Working Time | >200 hours (only OPM Work) / ≥50 hours (10mW VFL & OPM Work simultaneously) | |
| Working Temperature | -10℃ ~ +50℃ | |
| Weight | 250g | |
| Dimensions | 160 * 75 * 10mm |
The Solitine Optical Power Meter with VFL & RJ45 Tester is a powerful and reliable tool, ideal for network professionals who need precision in the field. This versatile device can accurately assess whether single network cables are transmitting signals properly and features a wavelength memory function that retains settings even after powering down. Its self-calibration and stable VFL output ensure consistently high performance with excellent accuracy, sensitivity, and linearity. Designed for convenience, the tester has an auto-off feature to preserve battery life and a USB charging port for easy power replenishment. Equipped with a long-lasting 18650 Li-ion battery, it boasts low power consumption for extended standby times. The sturdy rubber shell adds durability for field use, while its FC and SC connector compatibility broadens its utility. Additionally, the optional RJ45 network tester further enhances its capabilities, making it an essential all-in-one solution for optical and network cable testing.
