Specification
- Model: SOL-702Max
- Rated Working Voltage: AC 100-240V 50Hz 0.4A MAX
- Output Power (Max.): 36W
- Output Voltage (Selectable): 5V/9V/9V/12V/12V DC
- USB/DC Output: 5V USB
- Unit Dimensions: 178 x 173 x 42mm
- Battery Specification : 21700 Lithium Battery
- Capacity Of Battery : 20000mAh
- Product Color : Black
- Port : Type C
- Auto Start When Plugged In
- Overload & Short-Circuit Protection
- Over-charge and Over-discharge Protection
- Microprocessor Controlled System

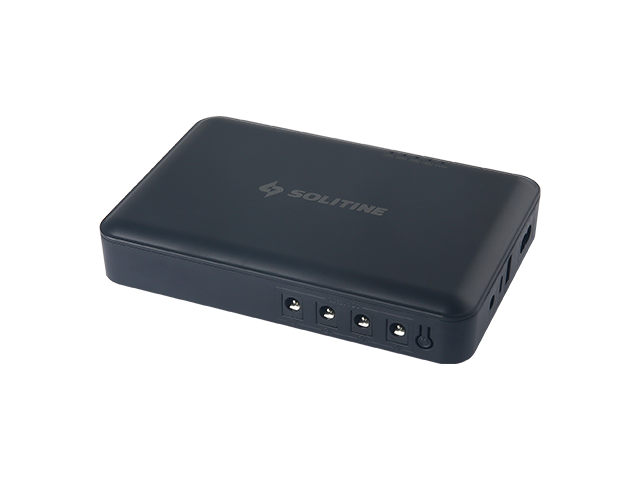

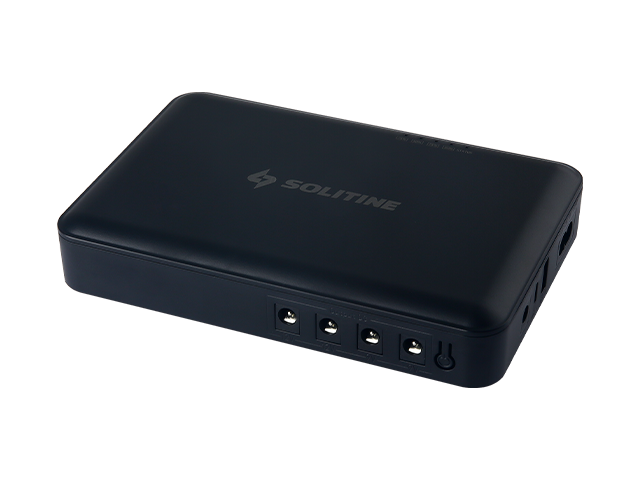

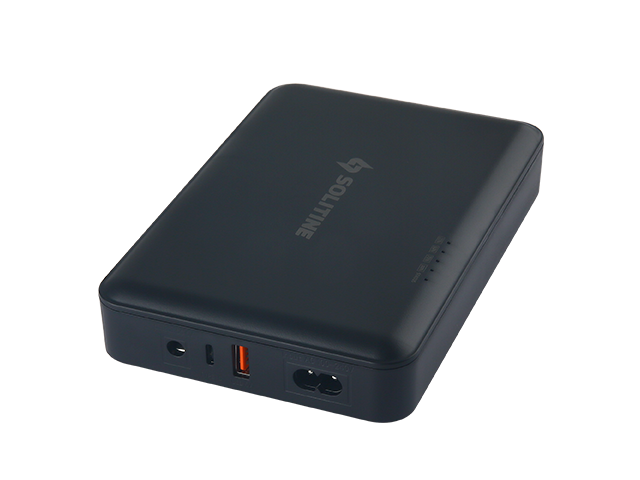

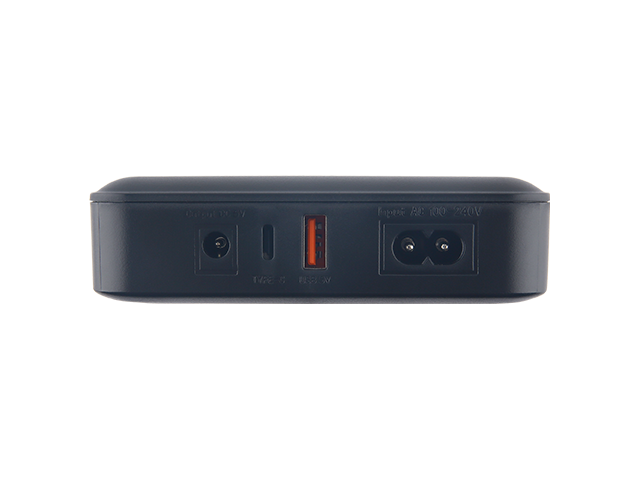

The Mini DC UPS is a high-efficiency, compact backup power supply designed to provide uninterrupted power to your essential low-voltage devices such as routers, ONTs, CCTV cameras, biometric systems, and more. Engineered with a built-in lithium battery and a smart microprocessor controller, it delivers maximum reliability and real-time protection for your equipment.
Operating within a wide voltage range of 90-264Vac, this UPS automatically starts when plugged in and delivers a maximum output of 24W. It offers selectable DC outputs (5V, 9V, 12V, 15V, and 24V), along with a dedicated 5V USB output (2.4A), enabling simultaneous powering of multiple devices.
