- Data Rate: 10Gbps
- Wavelengths:
- Tx: 1270nm / Rx: 1330nm
- Tx: 1330nm / Rx: 1270nm
- Transmission Distance: Up to 40km
- Connector Type: Simplex LC
- Power Supply: 3.3V with TTL Logic Interface
- Form Factor: Hot-pluggable SFP+
- Standards Compliance: IEEE 802.3ae 10GBASE-BX, SFP+ MSA Compatible
- Operating Temperature: 0°C to 70°C

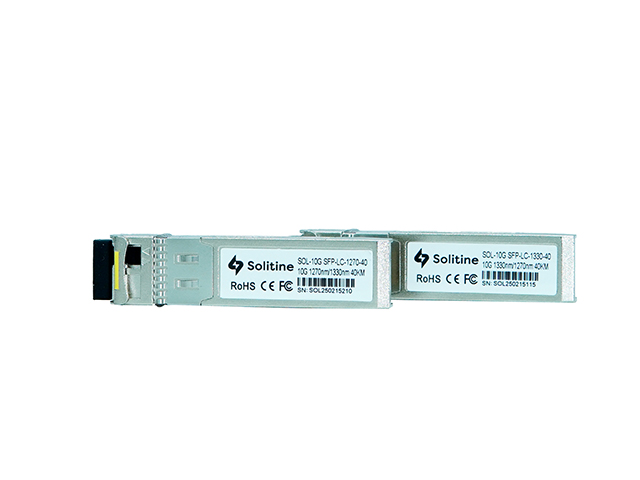

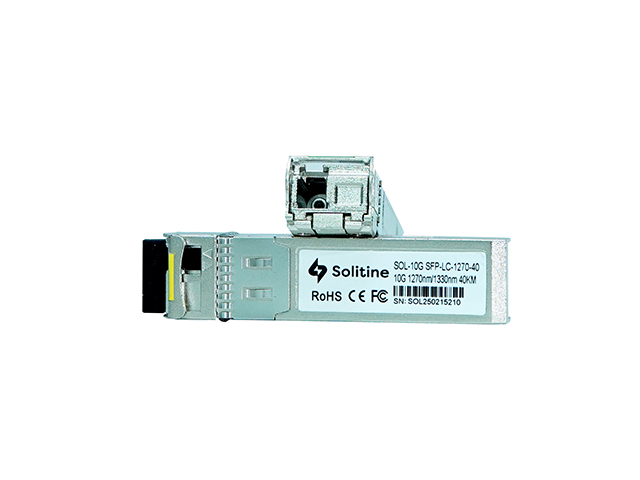

The Solitine 10G SFP+ Module delivers high-performance 10Gbps data transmission for long-distance fiber optic links, making it an ideal choice for telecom, enterprise, and ISP network deployments. Featuring bidirectional wavelength support — either 1270nm Tx / 1330nm Rx or 1330nm Tx / 1270nm Rx — this module enables efficient single-fiber communication, maximizing fiber utilization while reducing infrastructure costs.
Engineered for extended connectivity, it supports transmission distances of up to 40 kilometers over single-mode fiber, maintaining excellent signal integrity across long links. The simplex LC connector ensures quick, secure installation and integration into existing fiber networks without requiring complex modifications.
Built with a hot-pluggable SFP+ form factor, the module allows for easy installation or replacement without interrupting network operations, ensuring maximum uptime. Fully compliant with IEEE 802.3ae 10GBASE-BX standards, it guarantees wide compatibility with a variety of networking equipment from major vendors.
The Solitine 10G SFP+ Module also operates within a temperature range of 0°C to 70°C, making it suitable for demanding environments where consistent performance is critical. With low power consumption, robust build quality, and reliable operation, it offers a cost-effective, future-ready solution for organizations seeking to expand their 10Gbps network capacity over long distances.
