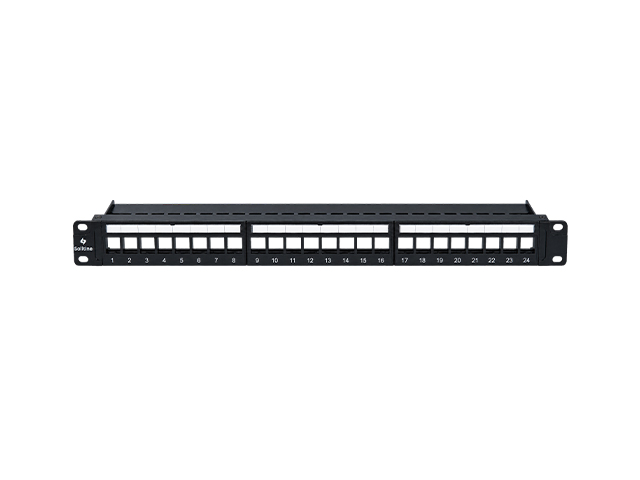

Solitine SOL-P2401-10 Cat6 24 Port Patch Panel

The Solitine SOL-P2401-10 is a high-performance Category-6 24 Port Patch Panel designed for clean structural network organization in standard 19-inch rack enclosures. This 1U fully metal-designed panel operates at up to 150 MHz frequency and ensures optimal headroom with minimized cross-talk for Gigabit Ethernet data or telecom transmission.

Superior Connectivity & Durability

Featuring gold-over-nickel plated RJ45 contacts and premium Krone IDC terminations, the SOL-P2401-10 supports extensive re-termination cycles. The rear KATT type IDC blocks handle 22–26 AWG solid cables for reliable long-term performance.

Easy Wiring & Organization

Color-coded rear Krone IDC blocks support both T568A and T568B wiring schemes. Distinct numeric port labeling on a sleek black semi-gloss powder coat finish provides clear and organized cable management.

Standard Rack Compatibility

Built with a standard 19-inch wide rack-mountable footprint occupying only 1U of rack space, the SOL-P2401-10 is ideal for modern high-speed enterprise Data, Telco, and Multimedia network designs. It complies with ANSI/TIA-568A/B and ISO/IEC 11801 & EN50173 Category 5e/6 standards.

The Solitine SOL-P2401-10 Cat6 24 Port Patch Panel is a reliable fully loaded solution for structured cabling (Cat6 Keystones Sold Separately).
