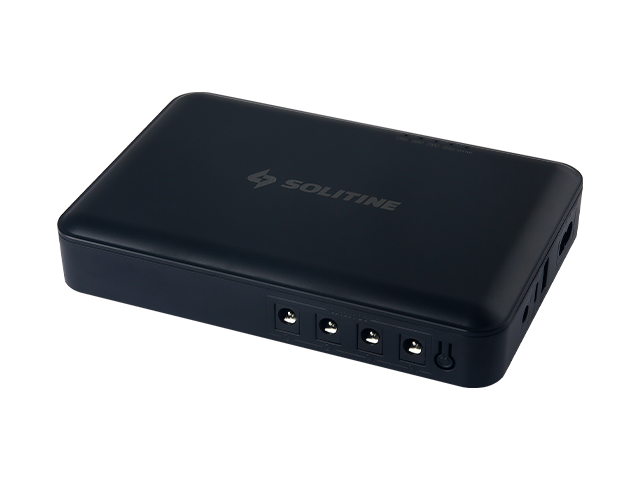

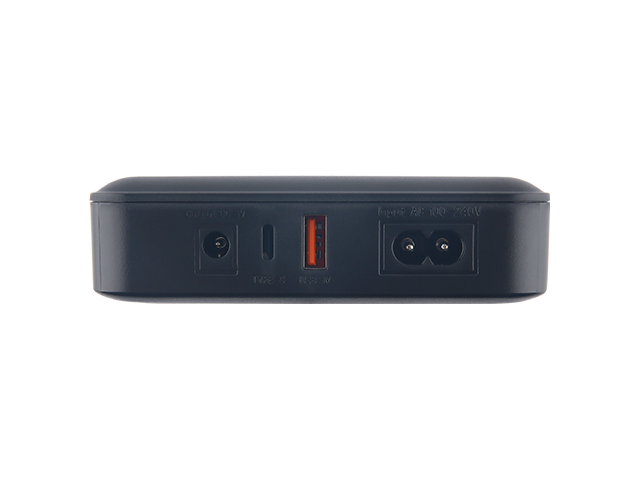

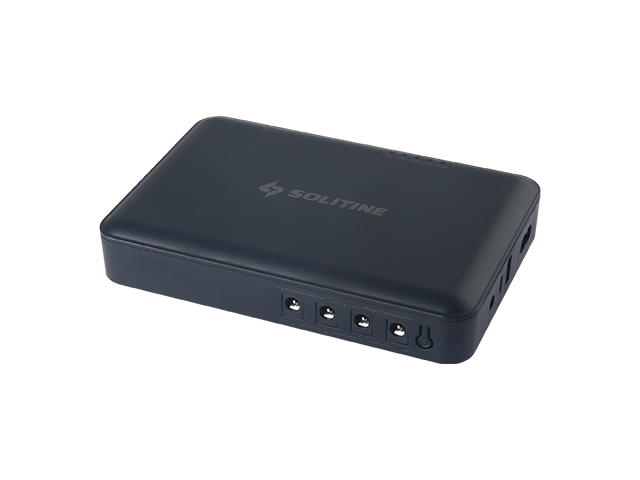

Solitine SOL-702Max Premium Mini DC UPS

UPS In Stock

Product Highlights

4 Features

20000mAh high-capacity lithium-ion battery (21700 cells) with 36W max output

Selectable multi-voltage outputs: 5V/9V/12V/15V/24V DC + USB & Type-C PD

Multiple DC ports for simultaneous Router, ONU, IP Camera & other device support

Intelligent protections, silent fanless design, auto-start & 1 Year Warranty

General

2 Specs

UPS Type Mini DC UPS (Lithium Battery Backup)

Color Black

Power

8 Specs

Capacity 20000mAh

Rated Power 36W Max

Input Voltage 90-264V AC, 50-60Hz

Output Voltage Selectable: 5V, 9V, 12V, 15V, 24V DC

Output Frequency 50-60Hz (Pass-through)

Waveform Type Pure DC Output

Transfer Time Instantaneous (0 ms – Seamless switch)

Efficiency High efficiency (typical >85%)

Battery

5 Specs

Battery Type Built-in High-quality Lithium-ion (21700 cells)

Battery Capacity 20000mAh

Battery Quantity Integrated (non-removable)

Backup Time 4–8+ hours (approx. 6-7 hours for 1 ONU + 1 Router; 4-5 hours with Camera)

Battery Voltage Internal Lithium nominal

Interface

7 Specs

AC Output Port None (DC UPS)

DC Output Port Multiple ports (e.g., 2×12V/2A, 2×9V/2A, 1×5V/3A)

USB Port Yes (5V/2.4A or 5V/3A)

PoE Output Not standard (some polarity support for specific use)

Connector Type DC ports + USB + Type-C (USB PD support)

LED Indicator Yes (Battery level + Status LEDs)

Power Button Yes

Protection

5 Specs

Overload Protection Yes

Short Circuit Protection Yes

Overcharge Protection Yes

Surge Protection Yes (basic)

Overheat Protection Yes (Microprocessor controlled)

Features

5 Specs

Auto Restart Yes (Auto Start When Plugged In)

Cold Start Yes

AVR Support Not applicable (DC UPS)

Silent Mode Yes (Fanless silent operation)

Smart Charging Yes (Microprocessor controlled + Type-C PD)

Physical

3 Specs

Dimensions 178 × 158 × 38 mm

Weight Approx. 650–850g

Material ABS Plastic

Warranty & Support

1 Spec

Warranty 1 Year Official Warranty
