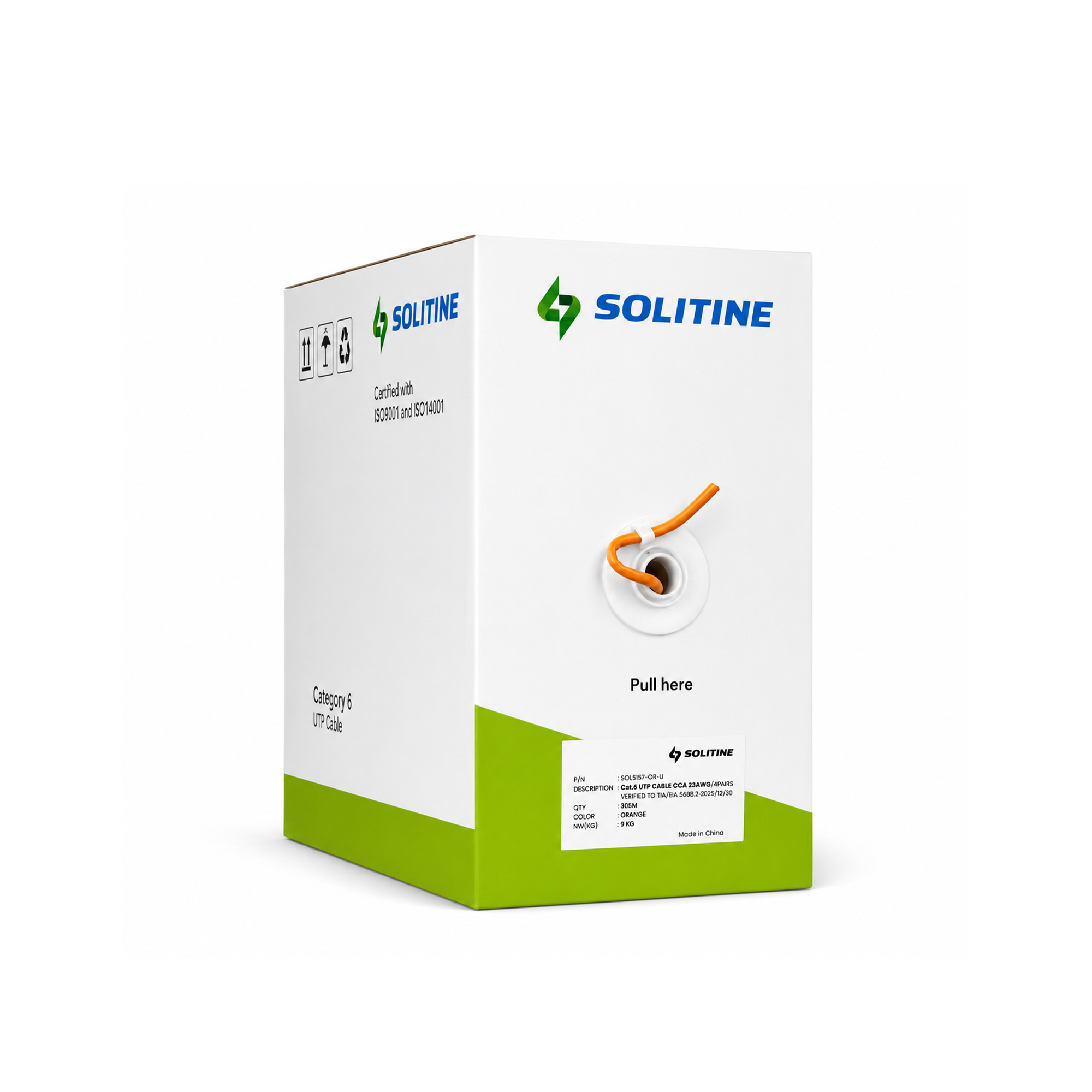

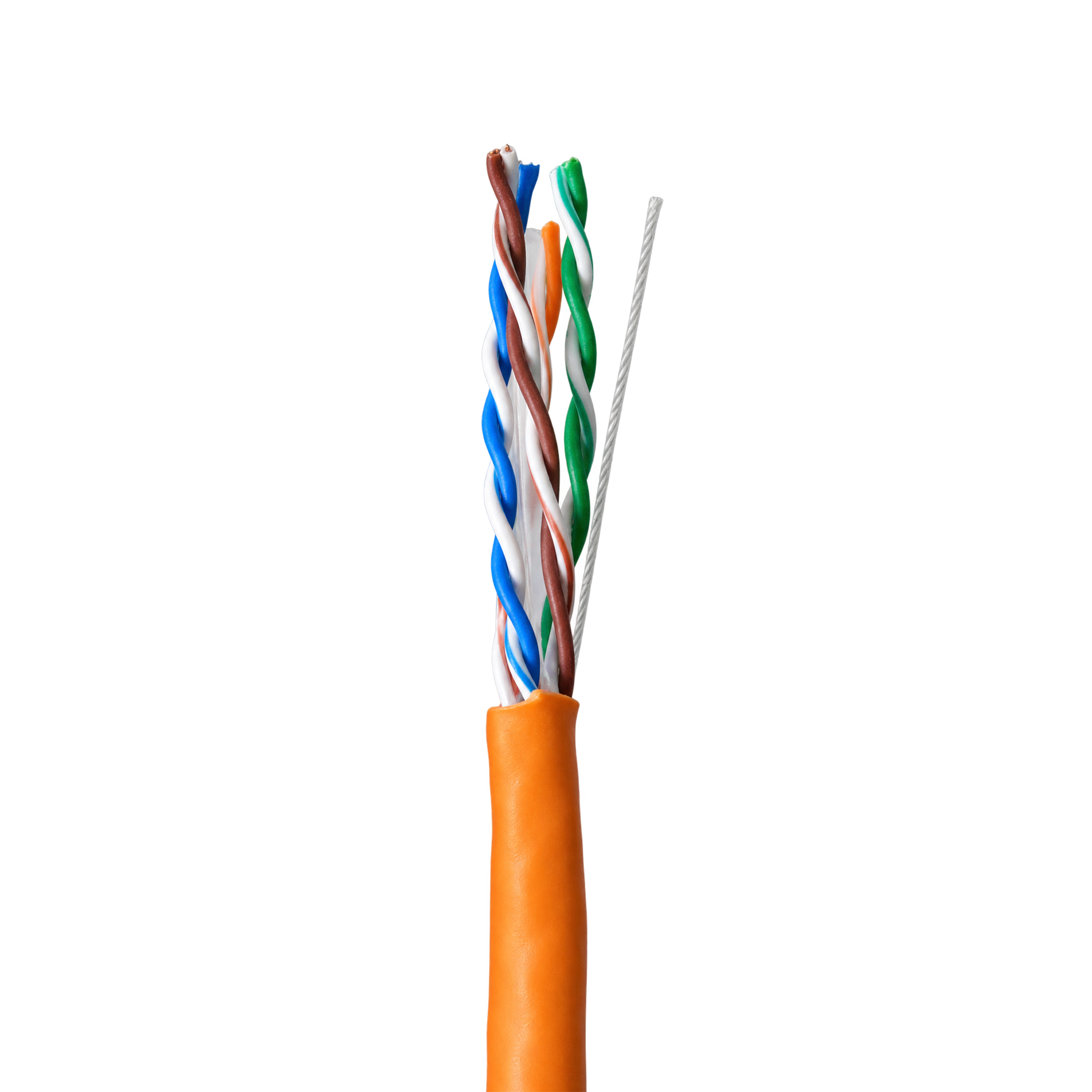

SOLITINE SOL5157-OR-U U/UTP 4-Pair Cat-6 CCA PVC LAN Cable (Orange)

SOLITINE SOL5157-OR-U U/UTP Cat-6 CCA PVC LAN Cable Orange (305m)

The SOLITINE SOL5157-OR-U is a high-performance, cost-effective Category 6 U/UTP solid cable designed for high-speed data networking and analog/digital video setups. Engineered with 23 AWG Copper Clad Aluminum (CCA) conductors and a PE central cross separator, it offers balanced transmission characteristics while mitigating crosstalk. This cable provides an optimal budget-friendly option for local area network (LAN) structures, IP CCTV transmissions, and voice deployments where restricted-length or standard runs are required.

High Bandwidth & Performance

Supporting operating frequencies up to 250 MHz and meeting Category 6 system benchmarks, this cable is suitable for 1000BASE-T Gigabit Ethernet (over restricted lengths), Fast Ethernet, IP CCTV, VoIP, and ISDN applications.

Cost-Effective Construction

Featuring 23 AWG solid CCA conductors, HDPE insulation, PE cross separator, and flame-retardant PVC jacket in Orange, the SOL5157-OR-U delivers reliable structural alignment and reduced pair-to-pair crosstalk in a budget-friendly package.

Standards Compliant & Practical

Fully compliant with ANSI/TIA-568.2-D, ISO/IEC 11801 Class E, and RoHS 2.0 standards. Ideal for short-range LAN, CCTV, and voice installations where pure copper is not mandatory.

The SOLITINE SOL5157-OR-U U/UTP Cat-6 CCA PVC LAN Cable is a dependable, economical solution for building high-speed wired networks on a budget.
