Specification
- Model: SOL-700BS
- Rated Working Voltage: AC 100-240V 50Hz 0.4A MAX
- Total Output Power: 24W
- DC Output Voltage (Selectable): 5V/9V/12V/12V/15V
- Output Power & Current: 5V2A / 9V2A / 12V2A / 15V1A
- PoE Interface: 15V PoE/24V PoE
- USB Output: 5V / 2.4A
- Output Polarity: +4,5pins - 7,8pins (for POE interface)
- Battery Specifications : 21700 Lithium Battery
- Capacity Of Battery : 20000mAh
- Protection: Overload, short-circuit, over-charge, and over-discharge
- Auto start when plugged in
- Microprocessor controller for high reliability
- Unit Dimension: 225 x 182 x 45 mm
- Product Color : White
- Bluetooth, Speaker

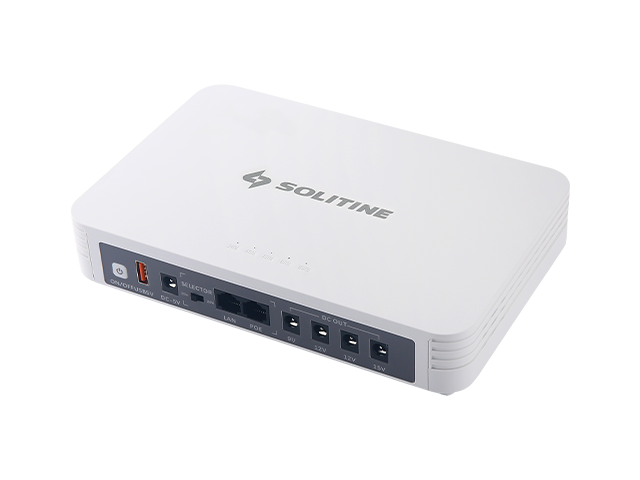

The Solitine SOL-700 BS Premium Mini DC UPS is a compact, high-performance power backup solution designed to protect your essential DC-powered devices from unexpected power outages. With its built-in lithium battery and smart microprocessor controller, it ensures maximum reliability, safety, and efficiency in operation.
This versatile mini UPS supports a wide input voltage range of 90–264Vac at 50–60Hz, making it suitable for use in a variety of environments. It delivers a maximum output power of 24W, supporting selectable DC output voltages of 9V, 12V, 15V, and 24V, along with a 5V USB output at 2.4A. The multiple output options allow compatibility with a wide range of devices such as routers, modems, CCTV cameras, biometric devices, and other low-power electronics. The POE (Power over Ethernet) interface provides added flexibility for powering network equipment directly through Ethernet cables.
The SOL-700 BS is built with essential safety features including overload, short-circuit, over-charge, and over-discharge protection, ensuring both the UPS and connected devices remain protected during adverse conditions. One of its convenient features is auto-start functionality, which powers up the connected device automatically when the power supply is restored.
